제품소개

NI PC형 DAQ

아날로그, 디지털, 카운터/타이머 회로를 제공하며
다양한 범위에서 뛰어난 안정성으로 측정할 수 있는 데이터 수집장치 입니다.

S-Series 다기능 DAQ
Spec. Model Bus Analog Inputs
(Difference)		 Resolution
(bit)		 Sampling Rate
(S/S)		 Analog Outputs Output Rate
(S/s)		 DIO
(DI/DO)
Basic NI 6143 PCI, PXI 8 16 250 K / ch - - 8
NI 6154 PCI 4 4 250 K / ch 6 / 4
Mid-speed NI 6120 PCI, PXI 4 16 800 K / ch 2 4 M 8
NI 6122 500 K / ch - -
NI 6123 8
High-speed NI 6110 PCI 4 12 5 M / ch 2 4 M 8
NI 6111 2
NI 6115 PCI, PXI 4 10 M / ch
Express 전용 NI 6346 PCIe 8 16 500 K / ch 2 900 k 24
NI 6356 PXIe, USB 1.25 M / ch 3.33 M / ch
NI 6358 PXIe 16 4 48
NI 6366 PXIe, USB 8 2 M / ch 2 24
NI 6358 PXIe 16 4 48
NI 6376 PCIe, PXIe 8 3.57 M / ch 2 24

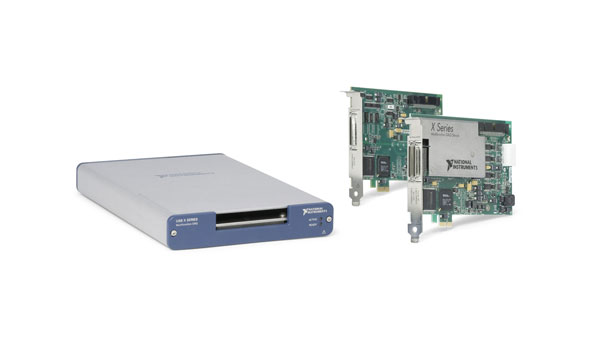

X-Series 다기능 DAQ
Spec. Model Bus Analog Inputs
(Difference)		 Resolution
(bit)		 Sampling Rate
(S/S)		 Analog Outputs Output Rate
(S/s)		 DIO
(DI/DO)		 DIO
Features
Basic NI 6320 PCIe 16 16 250 K - - 24 1 MHz
NI 6321 2 900 K
NI 6323 32 4 48
Mid-speed NI 6341 PCIe, PXIe, USB 16 16 500 K 2 900 K 24 1 MHz
NI 6343 PXIe, USB 32 4 48
High-speed NI 6351 PXIe, USB 16 12 1.25 M 2 2.86 M 24 10 MHz
NI 6353 32 4 48
NI 6361 PCIe, PXIe, USB 16 2 M 2 24
NI 6363 32 4 48
M-Series 다기능 DAQ
Spec. Model Bus Analog Inputs
(Difference)		 Resolution
(bit)		 Sampling Rate
(S/S)		 Analog Outputs Output Rate
(S/s)		 DIO
(DI/DO)		 DIO
Features
Basic NI 6000 USB 8 12 10 K - - 4 5 V TTL, static
NI 6001 14 20 K 2 5 K 13
NI 6002 16 50 K
NI 6003 100 K
NI 6220 PCI, PXI 16 (120 mA) 250 K - - 24 5 V TTL,1 MHz
NI 6221 (37-Pin) PCI 16 2 833 K 10
NI 6221 PCI, PXI, USB   24
NI 6225 80
NI 6229 32 4 48
NI 6224 PCI, PXI 32 - -
USB
(Bus power)		 NI 6210 USB 16 16 250 K - - 4 / 4 5 V TTL, static
NI 6211 2 250 K
NI 6212 400 K 24
NI 6215 250 K 4 / 4
NI 6216 400 K 32
NI 6218 32 250 K 8 / 8
High-speed NI 6250 PCI, PXI 16 16 1.25 M - - 24 5 V TTL,
10 MHz
NI 6251 PCI, PCIe, PXI,
PXIe, USB		 2 2.8 M
NI 6254 PCI, PXI 32 - - 48
NI 6255 PCI, PXI, USB 80 2 2.8 M 24
NI 6259 PCI, PCIe, PXI,
PXIe, USB		 32 4   48
High-Accuracy NI 6280 PCI, PXI 16 18 625 K - - 24 5 V TTL,
10 MHz
NI 6281 PCI, PXI, USB 2 2.8 M
NI 6284 PCI, PXI 32 - - 48
NI 6289 PCI, PXI, USB 4 2.8 M
Isolated (Bank) NI 6230 PCI, PXI 8 16 250 K 4 500 K 6 / 4 5 V TTL, static
NI 6232 16 2 24 V, sourcing
NI 6233 24V, sinking
NI 6236 4 Iso ( +20 mA) 4 5 V TTL, static
NI 6238 8 Iso ( +20 mA) 2 Iso ( 0-20 mA) 24 V, sourcing
NI 6239 24V, sinking
Digital Input/Output
Spec. Model Bus DIO (DI/DO) Current Direction (Output) DIO Features
Digital NI 6501 USB 24 Sinking 5 V TTL
NI 6503 PCI Sinking, Soucing
NI 6509 PCI, PCIe, PXI, USB 96
NI 6510 PCI (32 / - ) - ± 30 V
NI 6511 PCI, PXI (64 / - ) -
NI 6512 ( - / 64) Soucing 0 ~ 30 V
NI 6513 Sinking
NI 6514 (32 / 32) Soucing ± 30 V
NI 6515 Sinking
NI 6516 PCI ( - / 32) Soucing 0 ~ 30 V
NI 6517 Sinking
NI 6518 (16 / 16) Soucing ± 30 V
NI 6519
NI 6520 ( 8 / 8 ) Sinking ± 30 V / 0 ~ 60 V
NI 6521 PCI, PXI ± 30 V / 0 ~ 150 V
NI 6525 USB Sinking, Soucing 0 ~ 60 V
NI 6528 PCI, PXI (24 / 24) Sinking, Soucing ± 60 V
NI 6529 PXI (48 / - ) -
NI 6535 (B) PCIe, PXIe 32 10 MHz PWM 제어 5 V TTL
NI 6536 (B) 25 MHz PWM 제어
NI 6537 (B) 25 MHz (PXI), 50 MHz (PCI) PWM 제어
Spec. Model Bus DIO
(DI/DO)		 Current Direction
(Output)		 DIO
Features		 FPGA 외부 클럭 CH 최대 클럭속도
(MHz)		 다이나믹 RAM
(MB)
FPGA Digital NI 7811 PCI, PXI 160 Sinking 3.3V, 5 V Virtex-II 1M - 40 -
NI 7813 Virtex-II 3M
NI 7820 PCIe, PCIe 128 Sinking, Soucing 1.2 V, 1.5 V, 1.8V,
2.5 V, 3.3V		 Kintex-7 160T 4 80 -
NI 7821 - 512
NI 7822 - Kintex-7 325T
Counter / Timer
Spec. Model Bus DIO (DI/DO) Counter DIO Features
Basic NI 6601 PCI 32 4 5 V TTL, Static
NI 6602 PCI, PXI 8
NI 6612 PCIe, PXIe 40
NI 6624 PCI, PXI - 48 V
